Overview
Products Description
Our GZTECH 10W water-cooled picosecond solid-state green laser is designed for high-precision industrial micromachining.
With ultra-short pulse width and low thermal effect, it is ideal for glass, ceramics, semiconductor wafers, thin-film materials, PCB drilling, and delicate engraving applications.
The laser system features excellent beam quality, long-term stability, and a compact design suitable for integration into automated production lines.
Below picture are our 10W Solid Nanosecond Green Laser Source.
Key Advantages：
- High-Power Performance: The 10W output ensures the laser is powerful enough for high-precision cutting, welding, and marking applications, ideal for industrial-scale operations.
- Efficient Water Cooling: The integrated water-cooling system ensures stable performance even during extended use, preventing overheating and ensuring longevity.
- Precise Output: High-quality beam profile with low divergence, making it ideal for high-precision industrial tasks.
- Energy Efficient: The laser offers optimal conversion efficiency, reducing operational costs without compromising performance.
- Durability: Built to withstand continuous, high-demand operations with long-lasting reliability.
Applications
| Field | Usage Examples |
|---|---|
| Electronics | PCB drilling, IC trimming, silicon wafer marking. |
| Medical Devices | Precision micromachining of plastics, polymers, or thin films. |
| Transparent Materials | Laser Engravings of plain glass,crystal. |
| Materials Research | Laser ablation, nonlinear optics, green light spectroscopy. |
| Solar Industry | Edge isolation, scribing of solar cell components. |
Technical Specification
Below parameters are our 10W Solid Nanosecond Green Laser Source ( S-10-532-P1) Datasheet.
Product Packaging
Package details: 1 set Green Laser Source + Manual + Test Report per Carton Box.
Certifications
Our Solid Picosecond Green Laser has CE certificates and others.
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 3-10 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 7 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on Products Warranty?
A: We usually offer 18 months warranties on our Solid Green Laser Source products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE/ ROHS certifications and standards.
5. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Wuhan city, Hubei province. Which near with Raycus headquarters and Wuhan High Speed Train Station.
6. Q: How can I visit your factory?
A: Before you take business trip from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
Advantages
- Wavelength: 532 nm (green)
- Pulse Duration: Picosecond-level pulses (<15ps)
- Average Power: 10W /20W /25W /60W available. (customizable based on model)
- Repetition Rate: Adjustable from 1 to 2MHz
- Beam Quality: M² < 1.2 for superior focusability
- Cooling Method: water cooling.

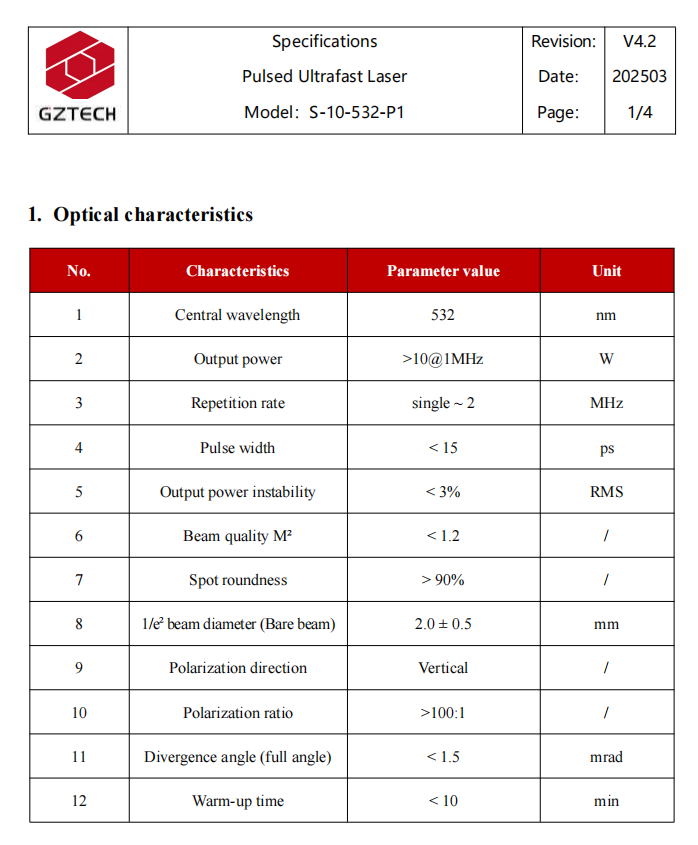

Spec
Optical characteristics
| N | Characteristics | Parameter value | Unit |
| 1 | Center wavelength | 532 | nm |
| 2 | Average output power | >10@1MHz | W |
| 3 | Pulse repetition rate(PRR) | Single~2 | MHz |
| 4 | Pulse Width | <15 | ps |
| 5 | Output power instability | <3% | RMS |
| 6 | Beam quality M² | <1.2 | / |
| 7 | Spot roundness | >90% | / |
| 8 | 1/e²beam diameter(Bare Beam) | 2.0±0.5 | mm |
| 9 | Polarization direction | Vertical | / |
| 10 | Polarization ratio | >100:1 | / |
| 11 | Divergence Angle (full angle) | <1.5 | mrad |
| 12 | Warm-up time | <10 | min |

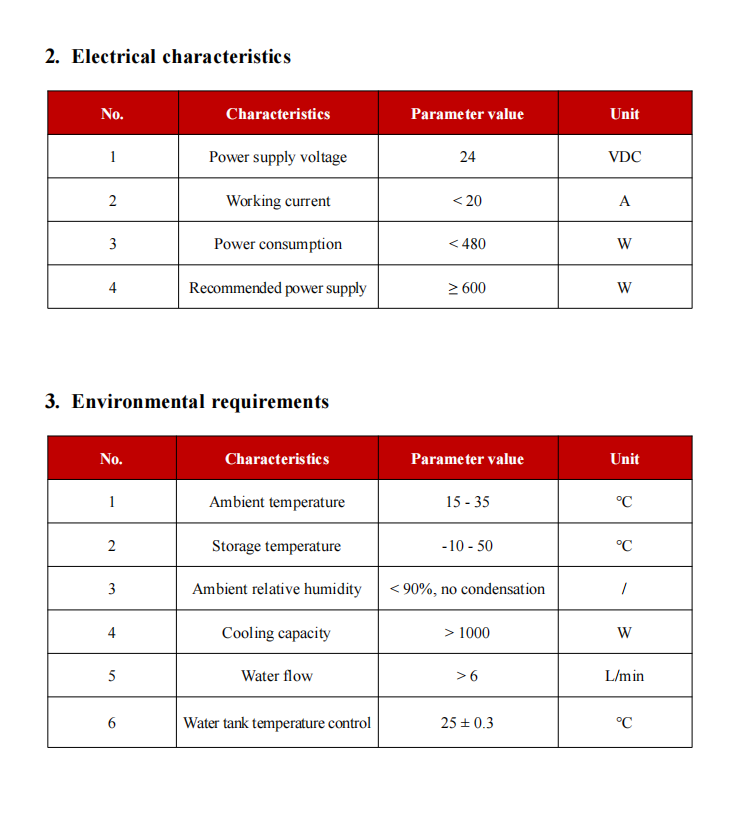

Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 13 | Power supply voltage | 24 | VDC |
| 14 | Working current | < 20 | A |
| 15 | Power consumption | <480 | W |
| 16 | Recommended power | ≥600 | W |
Environmental requirements
| N | Characteristics | Parameter value | Unit |
| 17 | Working temperature | 15-35 | ℃ |
| 18 | storage temperature | -10-50 | ℃ |
| 19 | Cooling Method | <90 | % |
| 20 | Cooling capacity | >1000 | W |
| 21 | Water flow rate | >6 | L/min |
| 22 | Water tank temperature control | 25±0.3 | ℃ |
Structural characteristics
| N | Characteristics | Parameter value | Unit |
| 23 |
Laser dimension (without feet and galvanometer adapter) |
541*314*131 | mm |
| 24 | Net weight |
27±1 |
kg |
Diagram

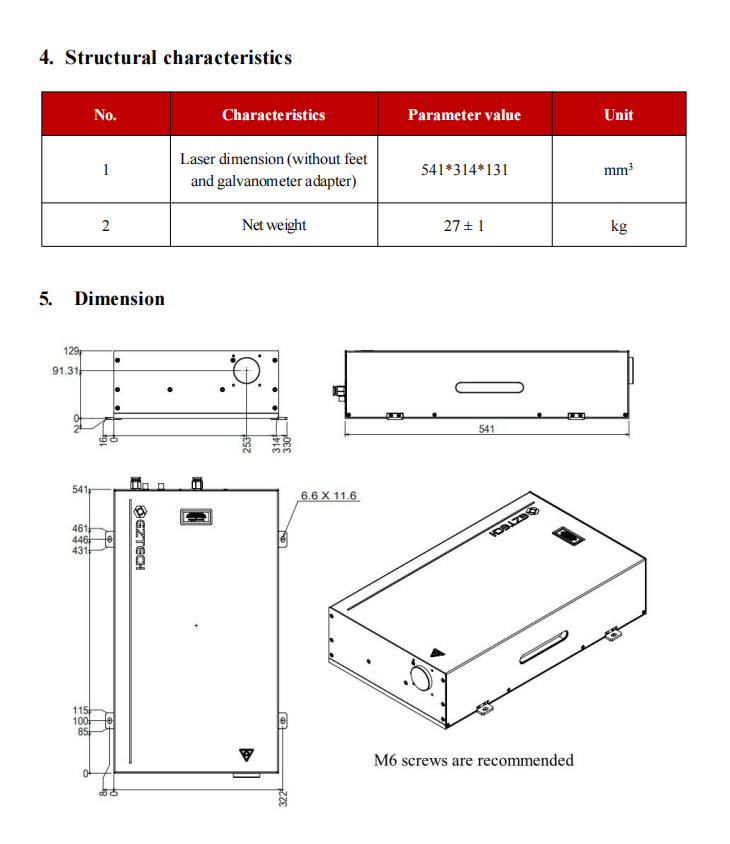

Product Dimension
Our 10W Solid Picosecond Green Laser structure are including: Isolator, Laser controller and Metal cover.
Here are our 10W Solid Picosecond Green Laser Source 3D drawing with dimensions.
