Products Description
Our GZTECH industrial 15W solid-state water-cooled UV laser are designed for high-precision marking and micromachining applications.
With a 355 nm ultraviolet wavelength and advanced thermal management, it delivers high energy density, excellent beam quality, and minimal heat-affected zones (HAZ) — ideal for cold processing on sensitive materials.
The integrated water-cooling system ensures long-term laser stability and continuous 24/7 operation, meeting the strict requirements of semiconductor, electronics, and high-precision manufacturing industries.
Product Key Features：
⭐ 1. High-Precision UV Output (355 nm)
Cold processing with minimal thermal impact — perfect for micro-scale finishing.
⭐ 2. Water-Cooled Structure for Maximum Stability
Maintains constant temperature → reduces thermal drift → ensures long service life.
⭐ 3. Excellent Beam Quality
M² < 1.3, delivers fine spot size and uniform energy distribution for micro-level accuracy.
⭐ 4. High Pulse Energy & High Repetition Rate
Suitable for high-speed marking, drilling, cutting, and fine ablation.
⭐ 5. Industrial-Grade 24/7 Continuous Operation
Designed for automated production lines with low maintenance requirements.
⭐ 6. OEM/ODM Available
Support customization for power, pulse width, interface, and system integration.

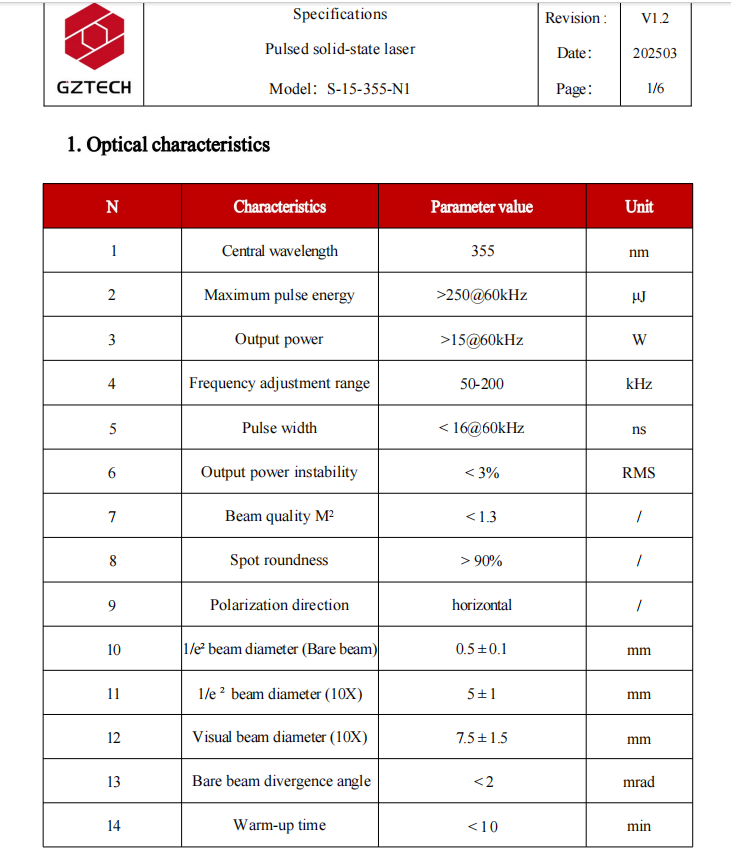

Product Parameters：
Product Applications：
-
Fused silica / quartz glass marking & drilling
-
Semiconductor wafer processing
-
PCB/FPC micro-cutting
-
OLED & LCD screen processing
-
Medical device marking
-
Plastic and polymer micromachining
-
Micro-hole drilling & thin film ablation

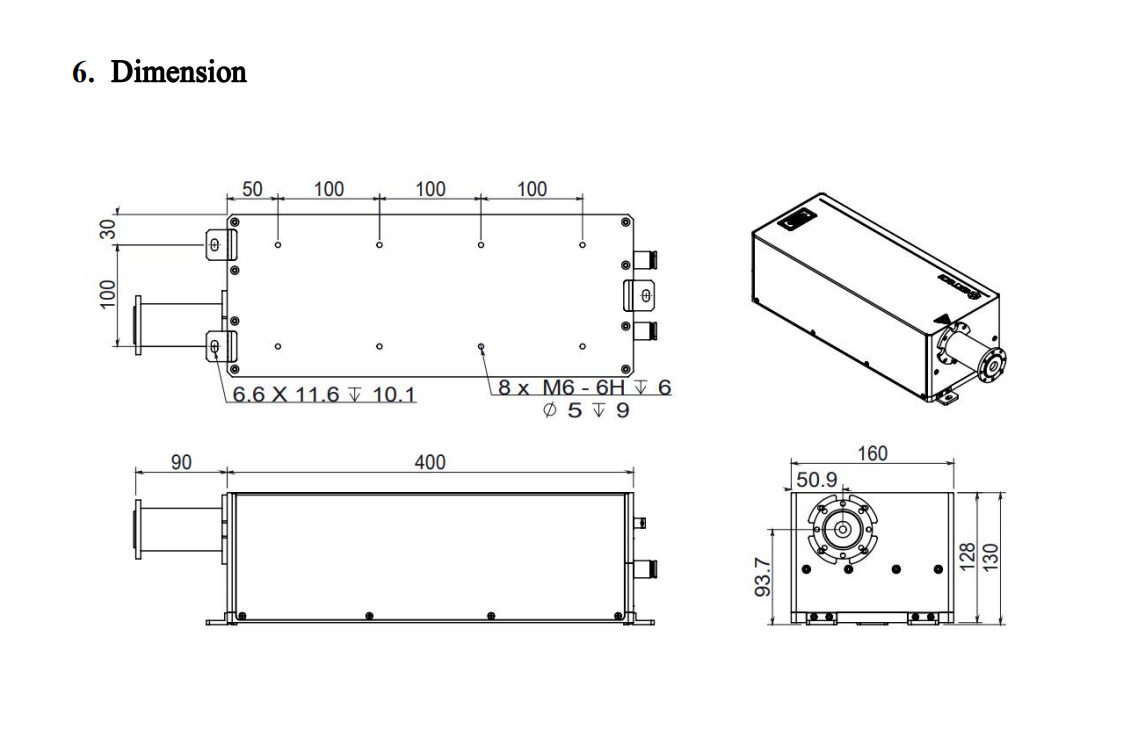

Product Dimension
FAQ
1. Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 3-10 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 7 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on Products Warranty?
A: We usually offer 18 months warranties on our Solid UV Laser Source products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE/ ROHS certifications and standards.
5. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Wuhan city, Hubei province. Which near with Raycus headquarters and Wuhan High Speed Train Station.
6. Q: How can I visit your factory?
A: Before you take business trip from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
优点
a.GZTECH solid UV laser series adopt compact structure, high beam quality, high average power can be used for laser fine marking cutting punching applications.
b.GZTECH solid UV laser can be used in many materials, whether it is plastic or electronic components, wafers or glass, pcb or fpcb.
规格
Optical characteristics
| N | Characteristics | Parameter value | Unit | |||
| 1 | Center wavelength | 355 | nm | |||
| 2 | Maximum pulse energy | >250(@60kHz) | uJ | |||
| 3 | Output Power | >15(@60kHz) | W | |||
| 4 | Frequency adjustment range | 50-200 | kHz | |||
| 5 | Pulse Width | <15 (@40kHz) | ns | |||
| 6 | Output power instability | < 3% | RMS | |||
| 7 | Beam quality M² | < 1.3 | / | |||
| 8 | Spot roundness | ＞90 | % | |||
| 9 | Polarization direction | Horizontal | / | |||
| 10 | 1/e² beam diameter (Bare beam) | 0.5±0.1 | mm | |||
| 11 |
|
5±1 | mm | |||
| 12 | Visual beam diameter (10X) | 7.5±1.5 | mrad | |||
| 13 | Bare beam divergence angle | <2 | mrad | |||
| 14 | Warm-up time | <15 | min |
Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 15 | Power supply voltage | 24 | VDC |
| 17 | Working current | <10 | ADC |
| 18 | Power consumption | <240 | W |
| 19 | Recommended power supply | ≥350 | W |
Environmental requirements
| N | Characteristics | Parameter value | Unit |
| 20 | Ambient temperature | 15~35 | ℃ |
| 21 | Storage temperaturet | -10 - 50 | ℃ |
| 22 | Ambient relative humidity | < 90 | % |
Structural characteristics
| N | Characteristics | Parameter value | Unit |
| 23 | Laser dimension | 400*160*130 | mm |
| 24 | Net weight | 12±0.3 | kg |
