Overview
Products Description
Our GZTECH GMC series MOPA laser sources have built-in isolators and small QCS output, which greatly reduces the volume and weight of the cleaning head, while maintaining the excellent anti-high-reflection performance of the laser, and has outstanding advantages in laser rust removal, paint removal, and other cleaning applications. Which suitable for 3C/ Photovoltaic/ Lithium battery/ Hardware/ Home appliances/ Automobile/ Glass and other industry needs.
Below picture are our 200W Power MOPA Fiber Laser Source GMC Series (YFPN-200-GMC) .
Advantages
Average power: 100~1000W
QCS output with 5m delivery cable
Max. pulse energy: 1.8 mJ
Adjustable pulse width 2~500ns
Strong anti-reflection
Certificates
Our GMC series Pulsed Fiber Laser Source has CE / ROHS / FDA and others.

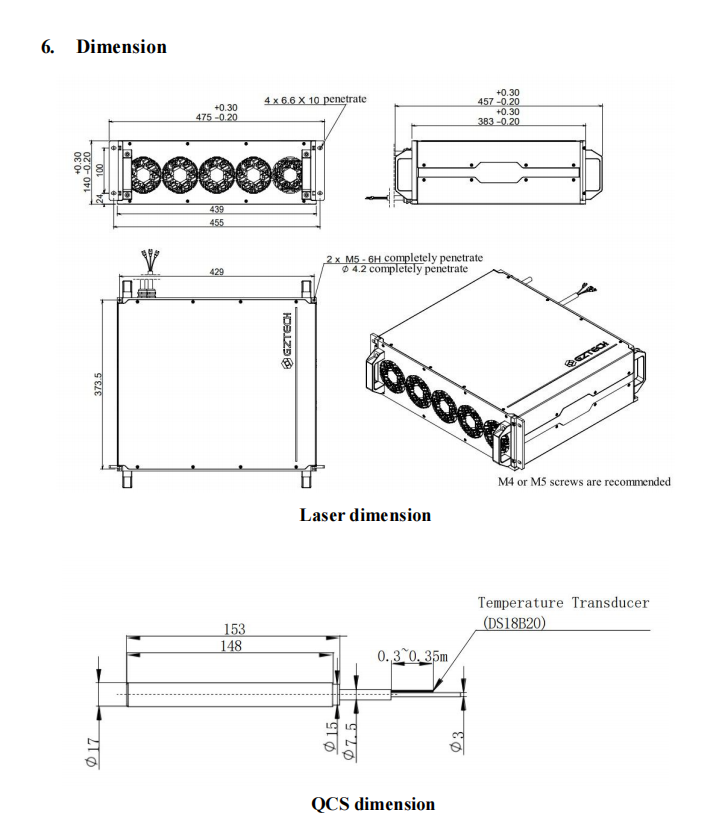

Product Dimension
Product Package
Our GMC series Pulsed Fiber Laser Source Package details: 1 set Laser Source + Manual per Carton Box.
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 3-10 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 7 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on Products Warranty?
A: We usually offer 3-5 years warranties on our Fiber Laser Source products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE/ ROHS certifications and standards.
5. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Wuhan city, Hubei province.
6. Q: How can I visit your factory?
A: Before you take business trip from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
Advantages
1. Average power: 100~1000W optional.
2. Output with 5m length delivery cable.
3. Max. pulse energy: 1.8 mJ.
4. Adjustable pulse width 2~500ns.
5. Strong Anti-reflection when operating.
Spec
Optical characteristics
| N | Characteristics | Parameter value | Unit |
| 1 | Center wavelength | 1064 | nm |
| 2 | Spectral width(FWHM) | < 20 | nm |
| 3 | Maximum pulse energy | 1.8 | mJ |
| 4 | Output Power | 100 | W |
| 5 | Power adjustment range | 0-100 | % |
| 6 | Frequency adjustment range | 1-3000 | kHz |
| 7 | On/off light response time | < 20 | μs |
| 8 | Pulse Width | 10-500 | ns |
| 9 | Output power stability | < 5 | % |
| 10 | Beam quality M² | <1.8 | / |
| 11 | Polarization direction | Random | / |
| 12 | resist high reaction | Yes | / |
| 1 | indicator light | 0.3-2 | mW |
| 1 | Collimated Beam diameter (4σ) | 5-7 | mm |
| 1 | Delivery cable length | 5 | m |
Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 16 | Power supply voltage | 48 | V |
| 17 | Working current | < 16 | A |
| 18 | Power consumption | <768 | W |
| 19 | Recommend Power Supply | ≥1000 | W |
Environmental requirements
| N | Characteristics | Parameter value | Unit | |
| 20 |
|
0-40 | ℃ | |
| 21 | storage temperaturet | -10 - 60 | ℃ | |
| 22 | Cooling Method | Air cooling | / |
Structural characteristics
| N | Characteristics | Parameter value | Unit |
| 20 | Laser dimension | 475*457*140 | mm |
| 21 | Isolator size |
Φ17*153
|
mm |
| 22 | Net weight | 27.5 | kg |
Product Packing
Our GMC series Pulsed Fiber Laser Source Package details: 1 set Laser Source + Manual per Carton Box.
FAQ
What is the difference between the MOPA and Q-switched laser marking application?
+1. Both laser offers similar marking applications but MOPA laser offers great flexibly and adjustment of various laser parameters e.g. prf, pulse duration, peak power, pulse shape etc.
2. In color marking, MOPA laser offers more bright and clear marking compared to Q-switched laser marking.
3. Higher Pulse Repetition Frequency of MOPA Laser helps in creating precision marking.
4. The edges of marked feature are generally yellow and rougher in Q-switched however, in case of MOPA laser; edges are smooth without being yellow.
What applications can a 50W MOPA fiber laser marking machine do?
+1. Both laser offers similar marking applications but MOPA laser offers great flexibly and adjustment of various laser parameters e.g. prf, pulse duration, peak power, pulse shape etc.
2. In color marking, MOPA laser offers more bright and clear marking compared to Q-switched laser marking.
3. Higher Pulse Repetition Frequency of MOPA Laser helps in creating precision marking.
4. The edges of marked feature are generally yellow and rougher in Q-switched however, in case of MOPA laser; edges are smooth without being yellow.
How many types of materials can be processed by MOPA laser machine?
+1. Both laser offers similar marking applications but MOPA laser offers great flexibly and adjustment of various laser parameters e.g. prf, pulse duration, peak power, pulse shape etc.
2. In color marking, MOPA laser offers more bright and clear marking compared to Q-switched laser marking.
3. Higher Pulse Repetition Frequency of MOPA Laser helps in creating precision marking.
4. The edges of marked feature are generally yellow and rougher in Q-switched however, in case of MOPA laser; edges are smooth without being yellow.
What's MOPA Laser?
+1. Both laser offers similar marking applications but MOPA laser offers great flexibly and adjustment of various laser parameters e.g. prf, pulse duration, peak power, pulse shape etc.
2. In color marking, MOPA laser offers more bright and clear marking compared to Q-switched laser marking.
3. Higher Pulse Repetition Frequency of MOPA Laser helps in creating precision marking.
4. The edges of marked feature are generally yellow and rougher in Q-switched however, in case of MOPA laser; edges are smooth without being yellow.
What kinds of materials can we do engraving with a MOPA laser?
+1. Both laser offers similar marking applications but MOPA laser offers great flexibly and adjustment of various laser parameters e.g. prf, pulse duration, peak power, pulse shape etc.
2. In color marking, MOPA laser offers more bright and clear marking compared to Q-switched laser marking.
3. Higher Pulse Repetition Frequency of MOPA Laser helps in creating precision marking.
4. The edges of marked feature are generally yellow and rougher in Q-switched however, in case of MOPA laser; edges are smooth without being yellow.
