Solid Green Laser

概述

Products Description

Our GZTECH Nanosecond Pulsed Solid Green Laser Source is a compact, high-performance laser system designed for precision marking, micromachining, and scientific applications. It generates a stable, high-quality 532 nm green laser beam with nanosecond pulse duration, offering excellent beam quality (M² < 1.2) and high peak power for demanding industrial and research tasks.

It's Ideal for Laser marking, cutting, and drilling applications on glass, plastic, silicon wafers, PCBs, ceramics, and more.

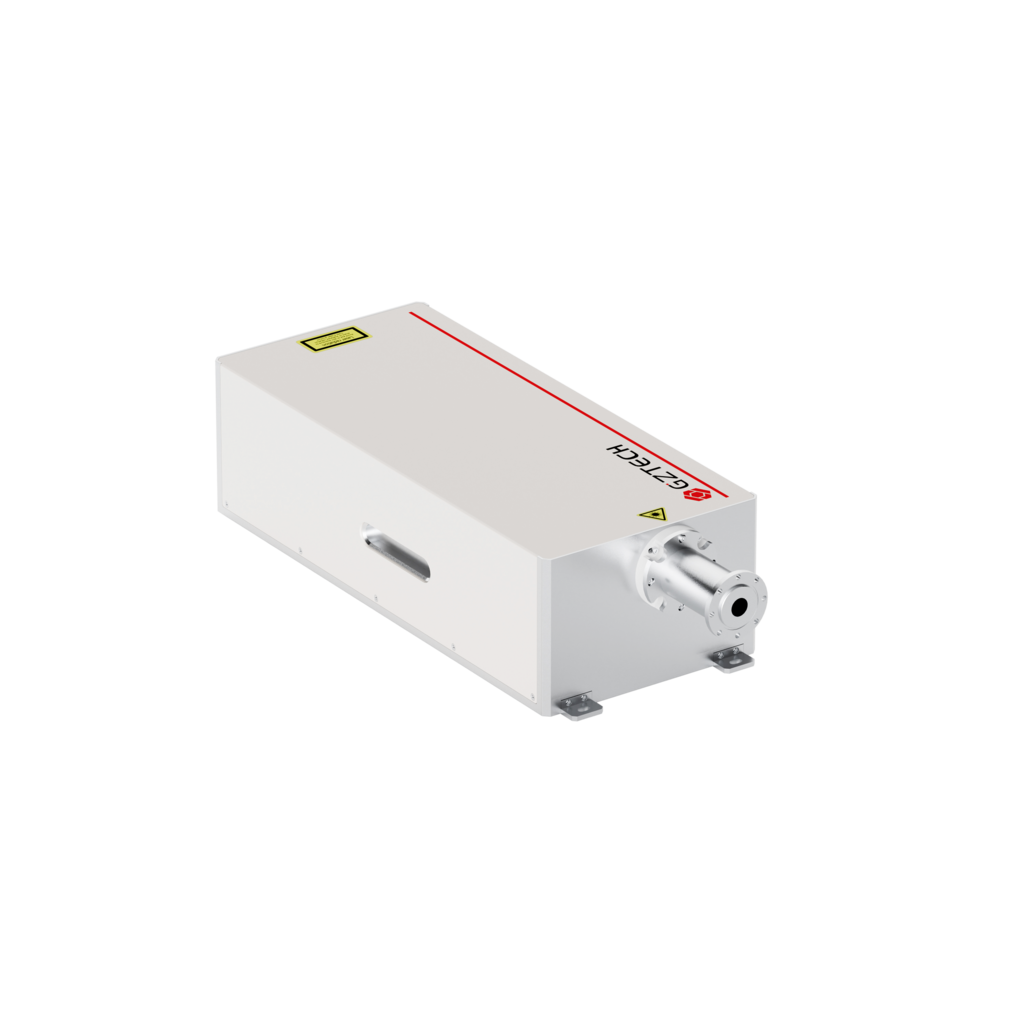

Below pictures are our 60W Nanosecond Solid Green Laser Source and Precision Laser Cutting for PCB surface.

Product Key Features：

Wavelength: 532 nm (green)

Pulse Duration: Nanosecond-level pulses (<15ns)

Average Power: 10W /20W /25W /60W available. (customizable based on model)

Repetition Rate: Adjustable from 50 kHz to 200 kHz

Beam Quality: M² < 1.3 for superior focusability

Cooling Method: Water cooling.

Product Parameters

Below parameters are our 60W Solid Nanosecond Green Laser Source Datasheet of Optical and others.

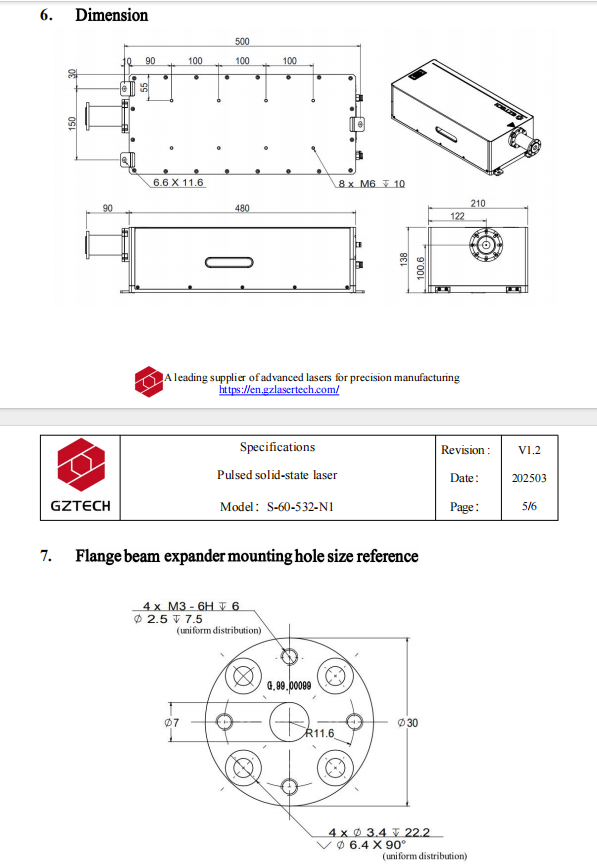

Product Dimension

Our Solid Nanosecond Green Laser Source structure are including: Isolator, Laser controller and Metal cover.

FAQ

1. Q: What is the expected lifespan or durability of the product?

A: Our product has an expected lifespan of 3-10 years and is designed to withstand heavy use in industrial environments.

2. Q: What is your company's experience and reputation in the industry?

A: Our company has been in business for 7 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.

3. Q: What is your company's policy on Products Warranty?

A: We usually offer 18 months warranties on our Solid Laser Source products to ensure customer satisfaction.

4. Q: Are there any certifications or standards that the product meets?

A: Yes, our product meets several industry certifications and standards, including CE/ ROHS certifications and standards.

优点

Product Advantages：

1 High peak power for efficient ablation and marking

2 Excellent beam stability and pointing accuracy

3 Integrated structural design and easily to install

4 Suitable for both metal and non-metal materials

5 Compatible with galvanometer scanners, CNC systems, and automation setups.

规格

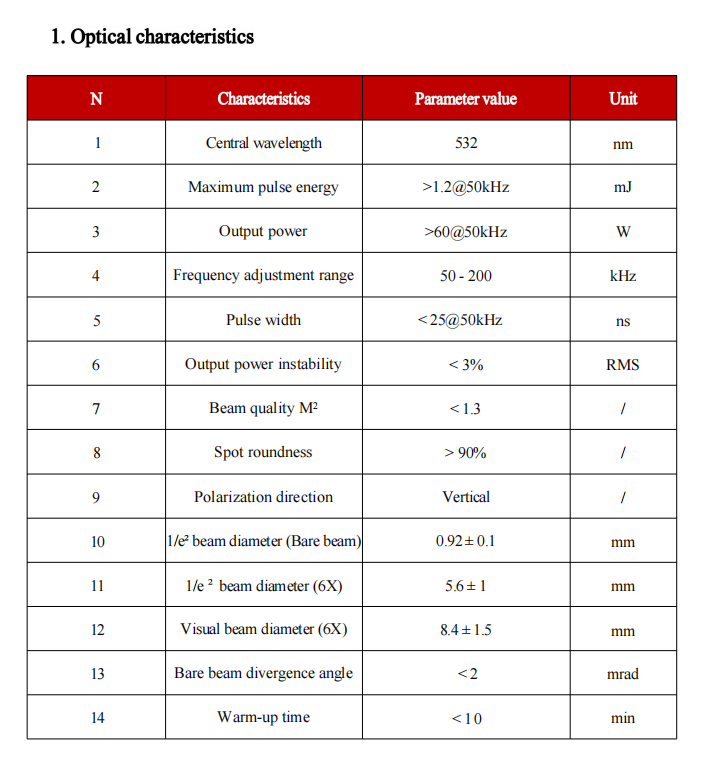

Optical characteristics

N	Characteristics	Parameter value	Unit
1	Center wavelength	532	nm
2	Maximum pulse energy	>1.2(@50kHz)	uJ
3	Output Power	>60(@50kHz)	W
4	Frequency adjustment range	50-200	kHz
5	Pulse Width	<25 (@50kHz)	ns
6	Output power instability	< 3%	RMS
7	Beam quality M²	< 1.3	/
8	Spot roundness	＞90	%
9	Polarization direction	Vertical	/
10	1/e² beam diameter (Bare beam)	0.92±0.1	mm
11	1/e ² beam diameter (6X)	5.6±1	mm
12	Visual beam diameter (6X)	8.4±1.5	mm
13	Bare beam divergence angle	<2	mrad
14	Warm-up time	< 10	min

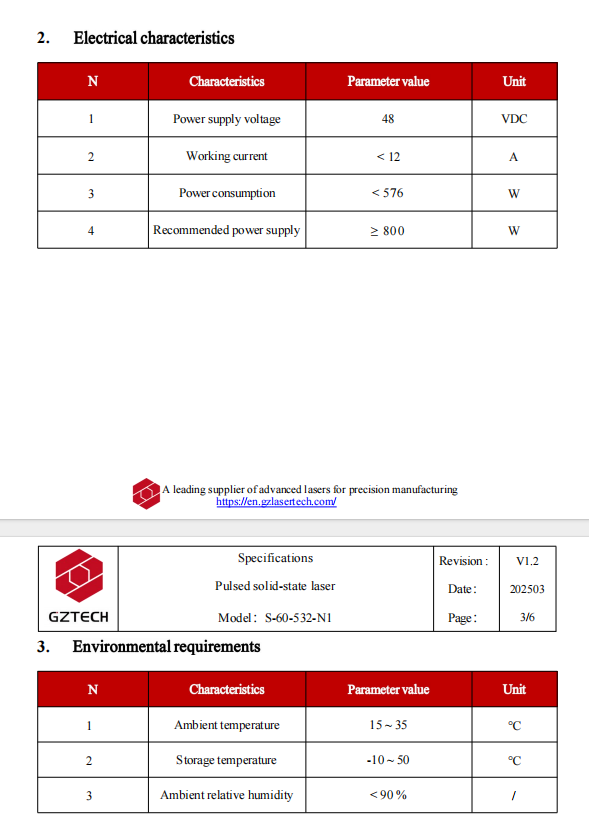

Electrical characteristics

N	Characteristics	Parameter value	Unit
15	Power supply voltage	48	VDC
16	Working current	< 12	ADC
17	Power consumption	<576	W
18	Recommended power	≥800	W

Environmental requirements

N	Characteristics	Parameter value	Unit
19	Ambient temperature	15~35	℃
20	Storage temperaturet	-10 - 50	℃
21	Ambient relative humidity	< 90 (no condensation)	%

Water cooler requirements

N	Characteristics	Parameter value	Unit
22	Cooling capacity	> 1000	W
23	water flow	> 6	L/min
24	Water tank temperature control	25±0.3	℃
25	Water pipe diameter	10	mm
