Overview
Products Description
Our GZTECH 200W High-power fiber-based green laser adopts a fiber-based fundamental frequency amplification and solid-state frequency doubling technology approach, offering advantages such as high average power and adjustable first pulse. The optimized single-mode amplification technology scheme enables high beam quality green light output. Through the MOPA optical scheme, features like adjustable pulse count and frequency can be achieved. The long pulse version allows for higher pulse energy output (200 µJ).
Product Features
Average power: 200W
Repetition frequency: 100~3000kHz
Max. pulse energy: 200uJ
Pulse string mode
Maintenance-free
Typical Application
Photovoltaic Application Glass Drilling and Inner Engraving
Laser Marking Precision Engraving

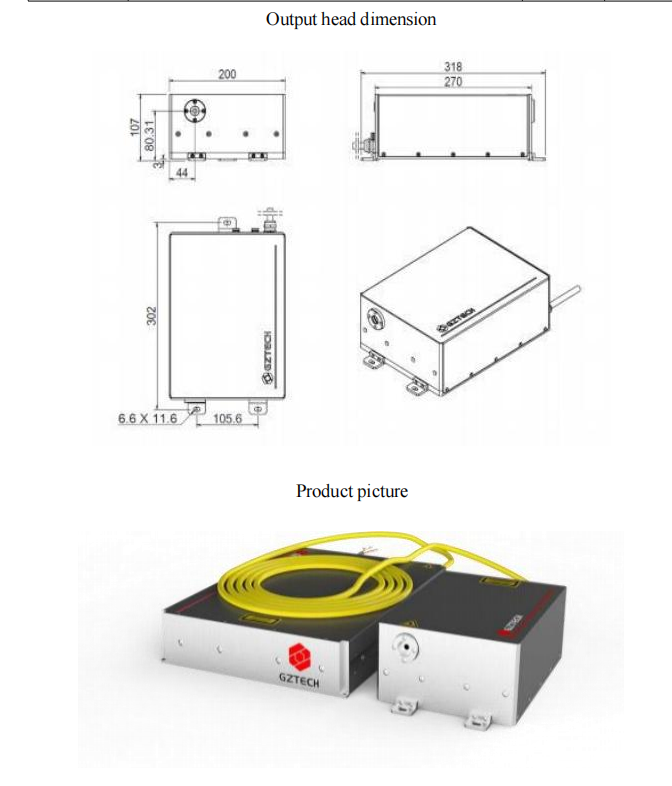

Product Dimension
Product Packaging
Package details: 1 set Laser Source + Manual + Specifiction per Carton Box.
Shipping Information
| FOB Port | China (Mainland) | ||||
|---|---|---|---|---|---|
| Weight per Unit | 23.1 Kilograms | ||||
| HTS Code | 9013.20.00 09 | ||||
| Export Carton Dimensions L/W/H | 73.0 x 71.0 x 17.0 Centimeters | ||||
| Lead Time | 4–7 days | ||||
|---|---|---|---|---|---|
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 3-10 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 7 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on Product Warranty?
A: We usually offer 3-5 years warranties on our Fiber Laser Source products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE/ ROHS certifications and standards.
5. Q: Do you have your own factory?
A: Yes, we have. Our factory locate in Wuhan city, Hubei province.
6. Q: How can I visit your factory?
A: Before you take business trip from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
Advantages
a.GZTECH green laser has an output spot size of 12mm, with the first pulse flat-topped, and features a compact integrated design.
b.GZTECH green lasers are mainly used for drilling film-coated glass and ultra-clear glass. They feature minimal chipping, with edge chipping of micro-holes (diameter < 1mm) less than 50 µm, and edge chipping of larger holes less than 100 µm.
Spec
Optical characteristics
| N | Characteristics | Parameter value | Unit |
| 1 | Center wavelength | 532 | nm |
| 2 | Spectral width @3dB | <1 | nm |
| 3 | Maximum single pulse energy | 0.15 | mJ |
| 4 | Maximum peak power | 10 | kW |
| 5 | Output Power | 200@1400kHz | W |
| 6 | Power Turning Range | 0-100 | % |
| 7 | Frequency Turning Range | 10-1000 | kHz |
| 8 | Laser switching ON/OFF time | <20 | μs |
| 9 | Pulse Width | 20±2 | ns |
| 10 | Output power stability | <5 | % |
| 11 | Number of pulses in a macro pulse | 2-8 | Piece |
| 12 | Beam quality M² | <1.2 | / |
| 13 | Beam ellipticity | >90 | % |
| 14 | Polarization direction | Linear polarization | / |
| 15 | Resist high reaction | Yes | / |
| 16 | Collimated beam diameter(4σ) | 2.5±0.5 | mm |
Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 17 | Power supply voltage | 48 | VDC |
| 18 | Working current | <10 | A |
| 19 | Power consumption | <960 | W |
| 20 | Recommended power | ≥1000 | W |
Environmental requirements
| N | Characteristics | Parameter value | Unit | |
| 21 |
|
0-40 | ℃ | |
| 22 | storage temperaturet | -10-60 | ℃ | |
| 23 | Cooling Method | Water cooling | / | |
| 24 | Water cooling temperature | 25±3 | ℃ | |
| 25 | Cooling water flow | >10 | L/min | |
| 26 | Water pipe diameter | 10 | mm | |
| 27 | Chiller cooling capacity | ≥1600 | W |
Structural characteristics
| N | Characteristics | Parameter value | Unit |

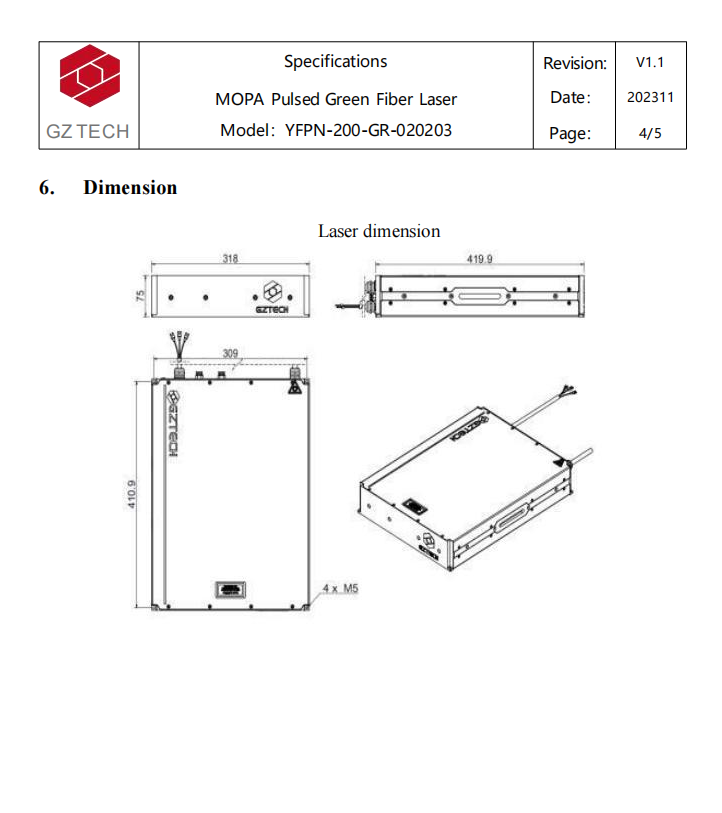

| 28 | Laser dimension | 420*318*75 | mm |
| 29 | Packaging size | 730*710*170 | mm |
| 30 | Net weight | <25 | kg |
