GZTECH CW 100W Fiber Laser Source

Overview

Products Description

Our GZTECH Continuous Wave (CW) Fiber Laser Source is a type of laser that emits a continuous, stable laser beam over time, as opposed to pulsed or modulated output. It employs a doped optical fiber (typically ytterbium, erbium, or thulium-doped fiber) as the gain medium, which is pumped by high-power laser diodes. The laser oscillation and amplification occur within the fiber itself, enabling compact and highly efficient operation.

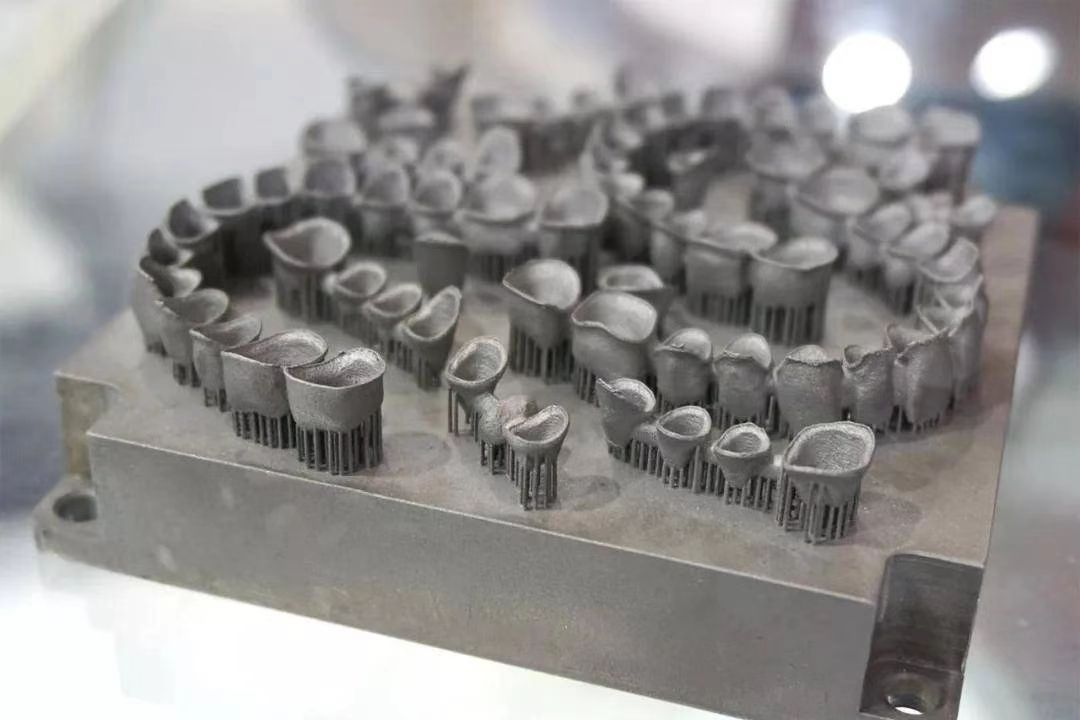

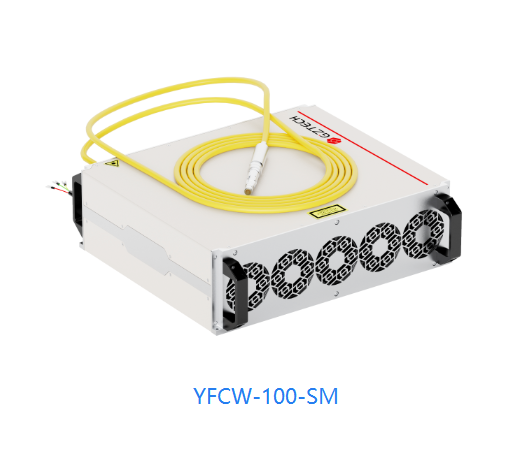

Below pictures are our CW 100W Fiber Laser Source ( YFCW-100-SM) and Precision 3D Laser printing apply at metal surface.

Product Features

1. High beam quality (M²<1.2)

2. Max modulation frequency 50kHz

3. Single mode fiber core diameter (14μm)

4. Single mode Continous Wave Air-cooled and water-cooled optional

5. Maintenance-free

Typical Applications:

Precision material processing (e.g., Laser cutting, welding, engraving).

3D Printing.

Silicon Lossless Scribing.

Certificates

Our CW series Fiber Laser Source has CE / ROHS / FDA and others.

Product Dimensions

Our CW Fiber laser source structure are including: Isolator, Delivery Fiber Cable, Laser controller and Metal cover.

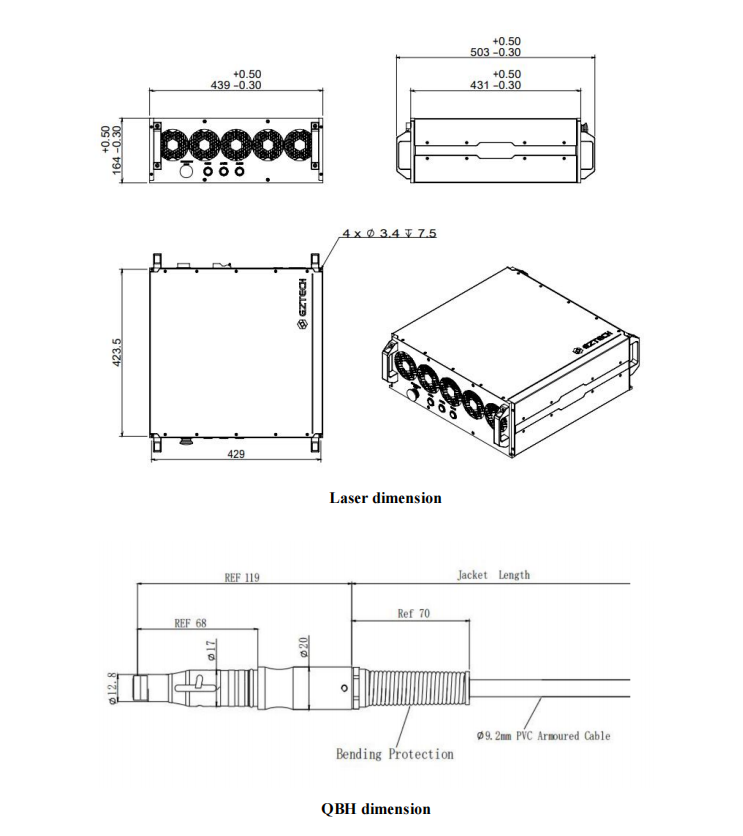

Here is our CW 100W Fiber Laser Source ( YFCW-100-SM)  drawing with dimensions

Product Packaging

Our CW Fiber Laser Source Package details: 1 set Laser Source + Manual + Specification per Carton Box

Shipping Information

FAQ

1.Q: What is the expected lifespan or durability of the product?

A: Our product has an expected lifespan of 3-10 years and is designed to withstand heavy use in industrial environments.

2. Q: What is your company's experience and reputation in the industry?

A: Our company has been in business for 7 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.

3. Q: What is your company's policy on Products Warranty?

A: We usually offer 3-5 years warranties on our Fiber Laser Source products to ensure customer satisfaction.

4. Q: Are there any certifications or standards that the product meets?

A: Yes, our product meets several industry certifications and standards, including CE/ ROHS certifications and standards.

5. Q: Do you have your own factory?

A: Yes, we have. Our factory located in Wuhan city, Hubei province.

6. Q: How can I visit your factory?

A: Before you take business trip from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.

7. Q: How can I be your agent in my country?

A: Please leave feedback. It's better for us to talk about details by email.

Advantage

Product Advantages:

Power attenuation <1% over 2-year use in repair comparison.

8-hour power stability fluctuation (RMS) <5%.

Good Beam quality with M²<1.2.

Switching ON time  (from 0% to 100% output) ≤10μs.

48V standard power supply, with strong compatibility, compatible with multiple power sources and equipment.

Machine dimension: 483*424*135mm, compact and flat design for more flexible space utilization.

Over 2,600 lasers were sold in the last two years.
