Products Description
Our GZTECH Solid Nanosecond Green Laser Source is a compact, high-performance laser system designed for precision marking, micromachining, and scientific applications. It generates a stable, high-quality 532 nm green laser beam with nanosecond pulse duration, offering excellent beam quality (M² < 1.3) and high peak power for demanding industrial and research tasks.
It's Ideal for Laser marking, cutting, and drilling applications on glass, plastic, silicon wafers, PCBs, ceramics, and more.

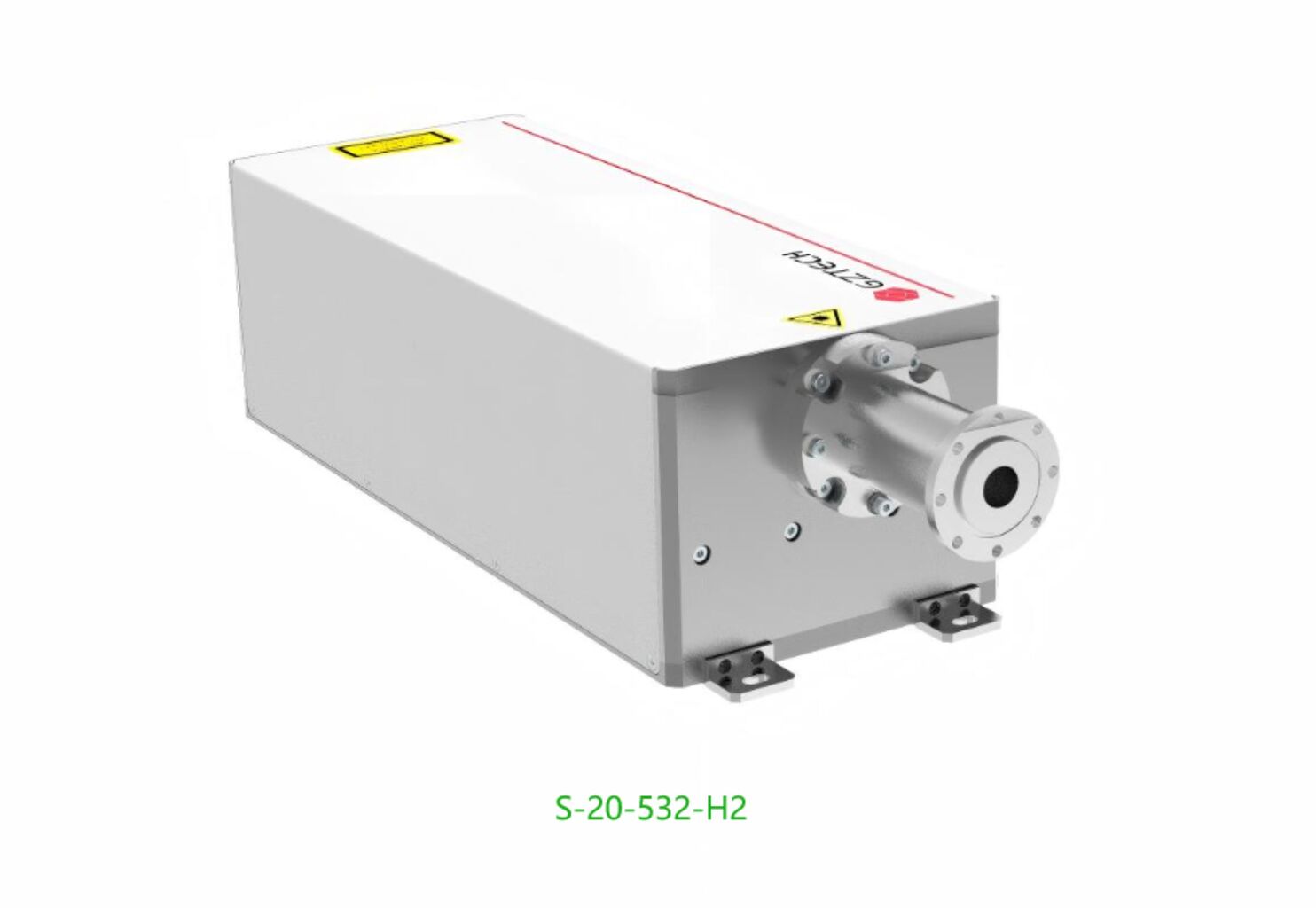

Below pictures are our 20W Solid Nanosecond Green Laser Source.
Product Features：
- Wavelength: 532 nm (green)
- Pulse Duration: Nanosecond-level pulses (<15ns)
- Average Power: 10W /20W /25W /60W available. (customizable based on model)
- Repetition Rate: Adjustable from 30 kHz to 200 kHz
- Beam Quality: M² < 1.3 for superior focusability
- Cooling Method: water cooling.
Key Advantages：
- High-Power Performance: The 20W output ensures the laser is powerful enough for high-precision cutting, welding, and marking applications, ideal for industrial-scale operations.
- Efficient Water Cooling: The integrated water-cooling system ensures stable performance even during extended use, preventing overheating and ensuring longevity.
- Precise Output: High-quality beam profile with low divergence, making it ideal for high-precision industrial tasks.
- Energy Efficient: The laser offers optimal conversion efficiency, reducing operational costs without compromising performance.
- Durability: Built to withstand continuous, high-demand operations with long-lasting reliability.
Technical Specification
Below parameters are our 20W Solid Nanosecond Green Laser Source ( S-20-532-H2) Datasheet.
Product Dimension
Our Solid Nanosecond Green Laser Source structure are including: Isolator, Laser controller and Metal cover.

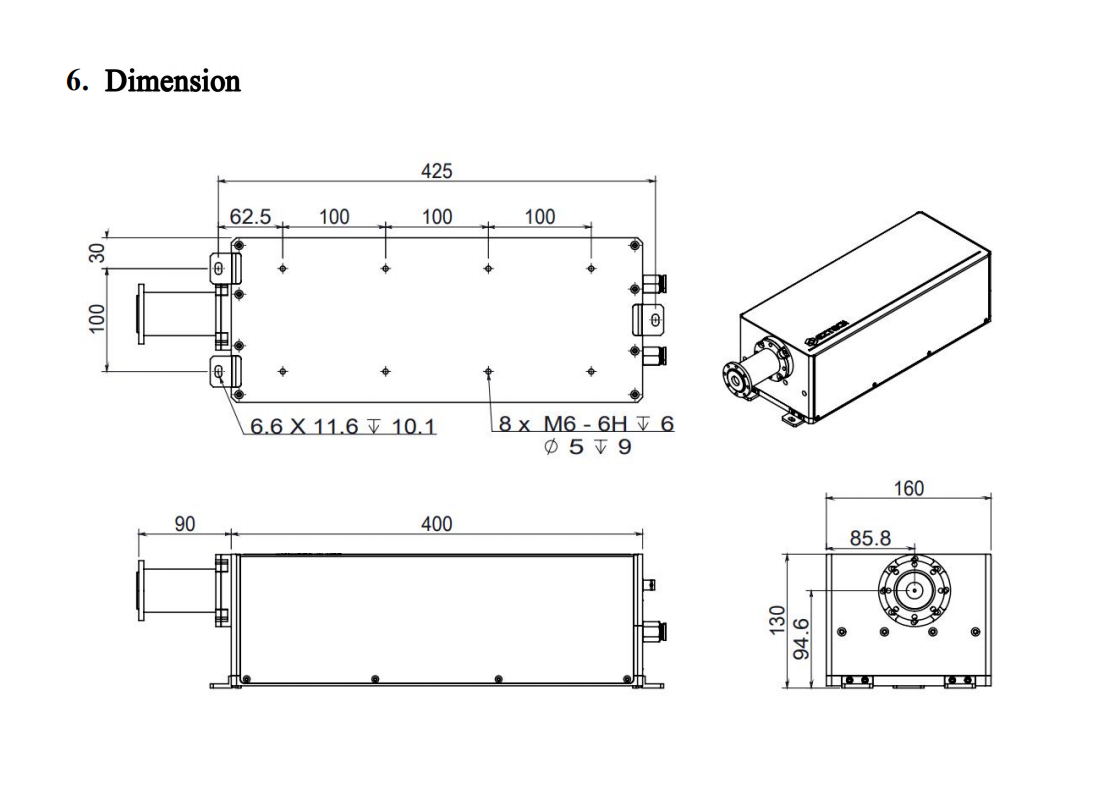

Here are our 20W Solid Nanosecond Green Laser Source 3D drawing with dimensions.
Product Packaging
Package details: 1 set Green Laser Source + Manual + Test Report per Carton Box.
Certifications
Our Solid Nanosecond Green Laser Source has CE certificates and others.
FAQ
1.Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 3-10 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 7 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on Products Warranty?
A: We usually offer 18 months warranties on our Solid Green Laser Source products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE/ ROHS certifications and standards.
5. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Wuhan city, Hubei province. Which near with Raycus headquarters and Wuhan High Speed Train Station.
6. Q: How can I visit your factory?
A: Before you take business trip from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
优点
Product Advantages：
-
Wavelength: 532 nm (Green).
-
Laser Type: Solid-State Laser.
-
Cooling System: Water-cooled, ideal for continuous high-power operation.
-
Output Power: Available in multiple power options, 10W-60W (customizable upon request).
-
Beam Quality: Excellent beam profile, perfect for precision processing and research.
-
Stability: Exceptional stability and longevity for continuous operation.
规格

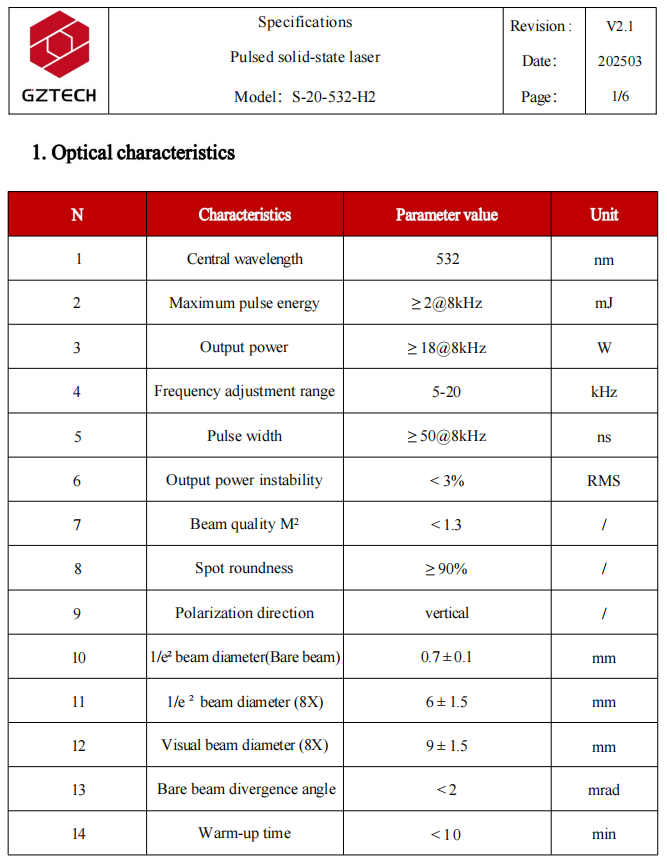

Optical characteristics
| N | Characteristics | Parameter value | Unit |
| 1 | Center wavelength | 532 | nm |
| 2 | Maximum pulse energy | ≥2(@8kHz) | mJ |
| 3 | Output Power | >18 (@8kHz) | W |
| 4 | Frequency adjustment range | 5-20 | kHz |
| 5 | Pulse Width | ≥50(@8kHz) | ns |
| 6 | Output power instability | < 3% | RMS |
| 7 | Beam quality M² | < 1.3 | / |
| 8 | Spot roundness | ＞90 | % |
| 9 | Polarization direction | Vertical | / |
| 10 | 1/e² beam diameter (Bare beam) | 0.7±0.1 | mm |
| 11 | 1/e ² beam diameter (8X) | 6±1.5 | mm |
| 12 | Visual beam diameter (8X) | 9±1.5 | mm |
| 13 | Bare beam divergence angle | <2 | mrad |
| 14 | Warm-up time | < 10 | min |
Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 15 | Power supply voltage | 24 | VDC |
| 16 | Working current | <10 | ADC |
| 17 | Power consumption | <240 | W |
| 18 | Recommended power | ≥350 | W |

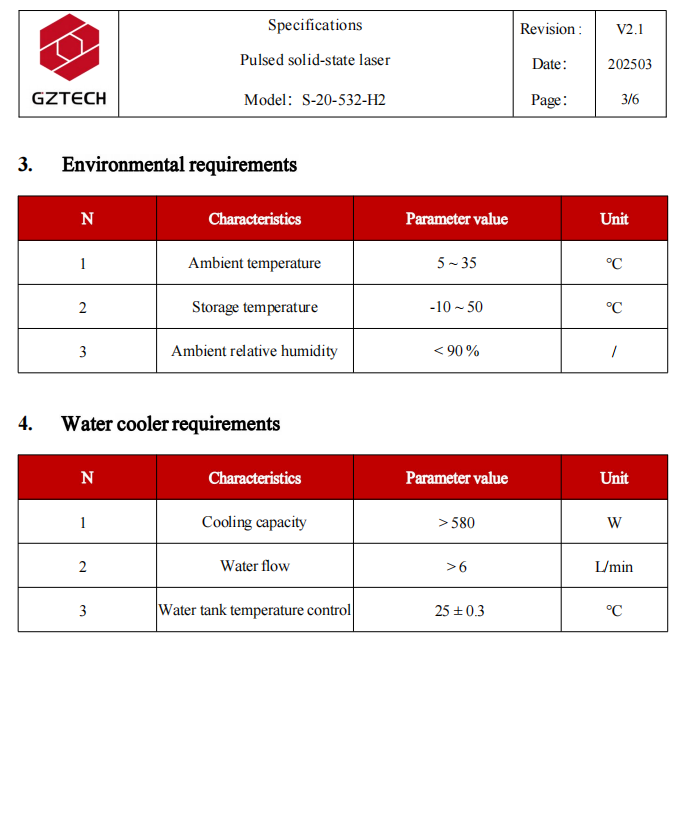

Environmental requirements
| N | Characteristics | Parameter value | Unit |
| 19 | Ambient temperature | 15~35 | ℃ |
| 20 | Storage temperaturet | -10 - 50 | ℃ |
| 21 | Ambient relative humidity | < 90 | % |
Water cooler requirements
| N | Characteristics | Parameter value | Unit |
| 22 | Cooling capacity | > 580 | W |
| 23 | water flow | > 6 | L/min |
| 24 | Water tank temperature control | 25±0.3 | ℃ |
Structural characteristics
| N | Characteristics | Parameter value | Unit |
| 25 | Laser dimension | 400*160*130 | mm |
| 26 | Net weight | 12 | kg |
