Products Description
Our GZTECH 30W Nanosecond Pulsed Solid UV Laser are based on the end-pumped Q-switched nanosecond intracavity frequency-doubling laser can realize ultraviolet laser output, with excellent beam quality and perfect spot characteristics. The whole machine adopts an integrated structure design, and the optical path and external drive circuit are integrated. Optimize and upgrade the fully sealed structure to effectively prevent external dust from entering. Ideal for marking, cutting, and drilling applications on glass, plastic, silicon wafers, PCBs, ceramics, and more.

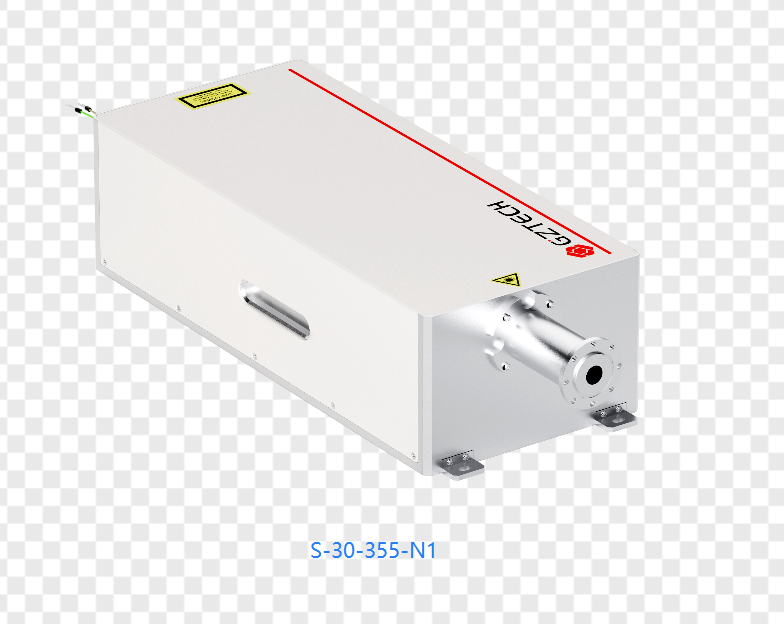

Below pictures are our 30W Nanosecond Pulsed Solid UV Laser Source.
Product Key Features：
⭐ 1. High-Precision UV Output (355 nm)
Cold processing with minimal thermal impact — perfect for micro-scale finishing.
⭐ 2. Water-Cooled Structure for Maximum Stability
Maintains constant temperature → reduces thermal drift → ensures long service life.
⭐ 3. Excellent Beam Quality
M² < 1.3, delivers fine spot size and uniform energy distribution for micro-level accuracy.
⭐ 4. High Pulse Energy & High Repetition Rate
Suitable for high-speed marking, drilling, cutting, and fine ablation.
⭐ 5. Industrial-Grade 24/7 Continuous Operation
Designed for automated production lines with low maintenance requirements.
⭐ 6. OEM/ODM Available
Support customization for power, pulse width, interface, and system integration.
Product Applications：
-
Fused silica / quartz glass marking & drilling
-
PCB/FPC micro-cutting
-

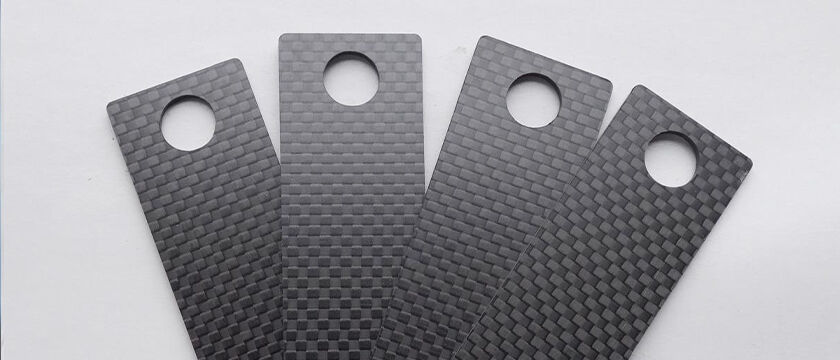

Carbon Fiber Reinforced Polymer Material cutting.
-

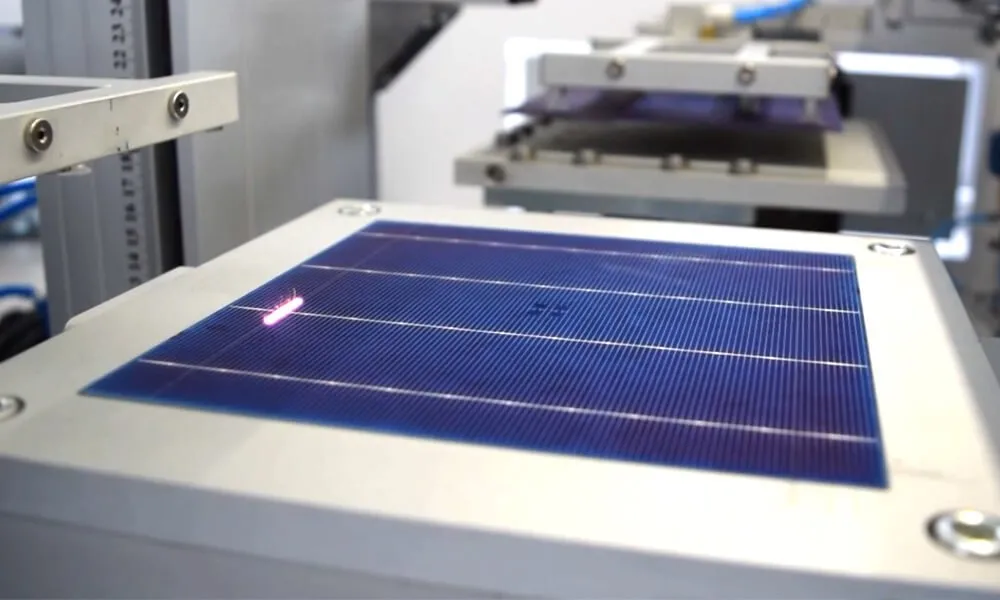

Flexible Solar Module and other Brittle Material cutting.
-
Plastic and polymer micromachining
-
Micro-hole drilling & thin film ablation
Product Parameters

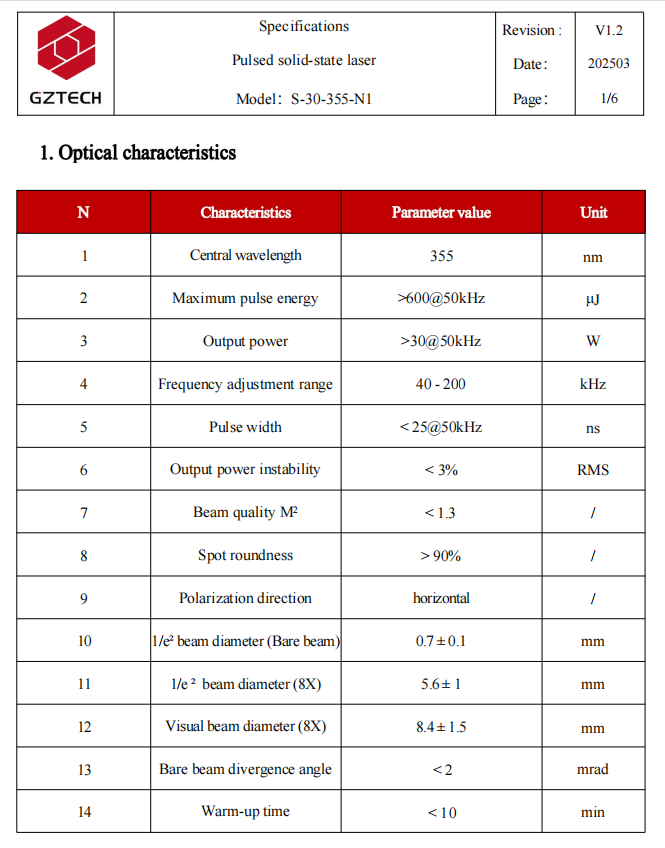

Below parameters are our 30W Solid Nanosecond UV Laser Source Datasheet.

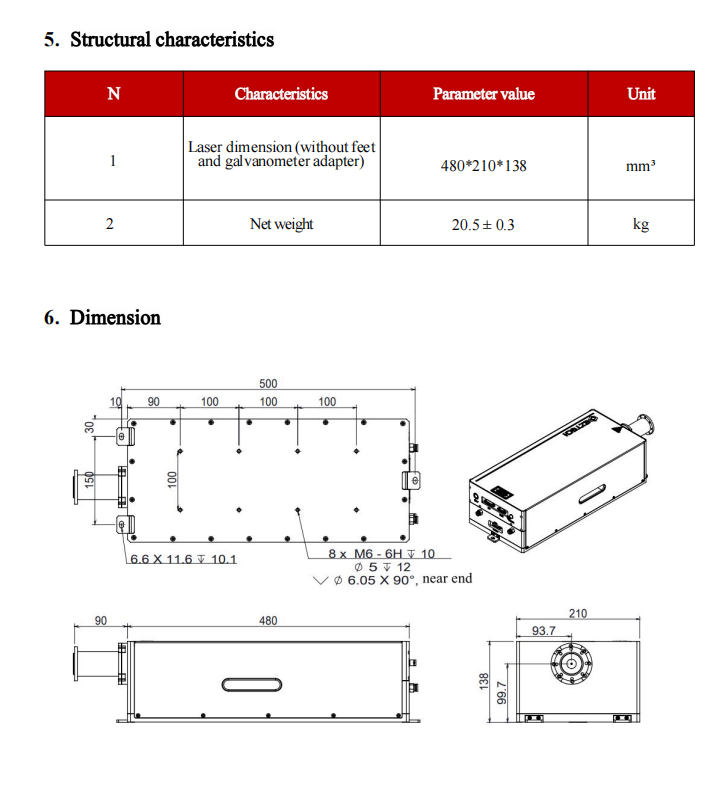

Product Dimension

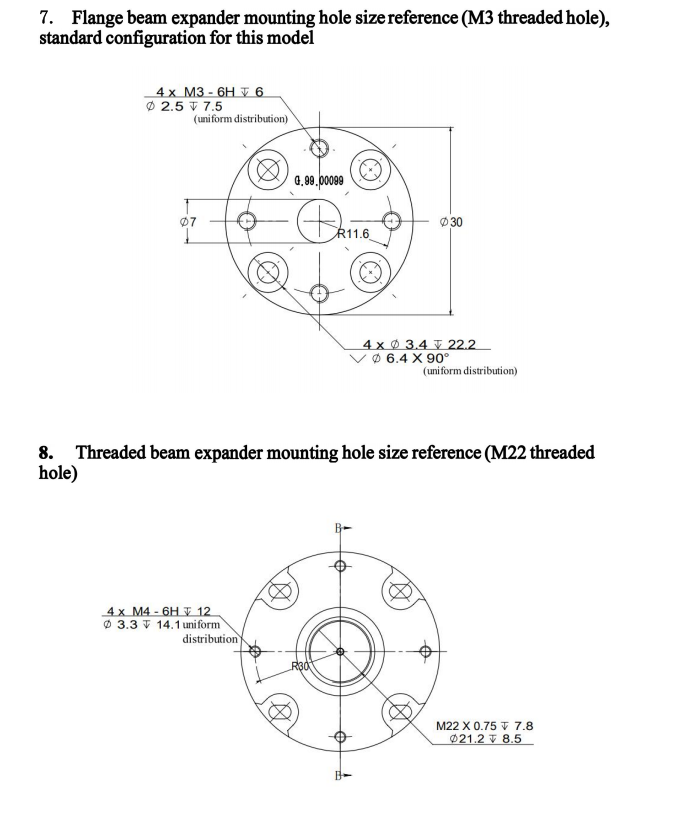

Our Solid Nanosecond UV Laser Source structure are including: Galvanmeter adapter, Laser controller and Metal cover.
Product Packaging
Package details: 1 set Laser Source + Manual + Test report per Carton Box
Certificates
CE/ ROHS and others
Shipping Information
| FOB Port | Wuhan / Shanghai/ Shenzhen | ||||
|---|---|---|---|---|---|
| Gross Weight per Unit | 25.8 Kilograms | ||||
| HS Code | 9013.20.00 09 | ||||
| MOQ | 1 set | ||||
| Lead Time | 4–7 days | ||||
|---|---|---|---|---|---|
| Dimensions per Unit | 74.7 x 40.7 x 30.0 Centimeters | ||||
FAQ
1. Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 3-10 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 7 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on Products Warranty?
A: We usually offer 18 months warranties on our Solid UV Laser Source products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE/ ROHS certifications and standards.
5. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Wuhan city, Hubei province. Which near with Raycus headquarters and Wuhan High Speed Train Station.
6. Q: How can I visit your factory?
A: Before you take business trip from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
优点
Medium and high power nanosecond solid UV laser
Average power: 30W / 40W available.
High Beam quality with M²<1.3
High power stability RMS <3%
All in one structure design and easy to install.
规格
Optical characteristics
| N | Characteristics | Parameter value | Unit | |||
| 1 | Center wavelength | 355 | nm | |||
| 2 | Maximum pulse energy | >600(@50kHz) | uJ | |||
| 3 | Output Power | >30(@50kHz) | W | |||
| 4 | Frequency adjustment range | 40-200 | kHz | |||
| 5 | Pulse Width | <25 (@50kHz) | ns | |||
| 6 | Output power instability | < 3% | RMS | |||
| 7 | Beam quality M² | < 1.3 | / | |||
| 8 | Spot roundness | ＞90 | % | |||
| 9 | Polarization direction | Horizontal | / | |||
| 10 | 1/e² beam diameter (Bare beam) | 0.7±0.1 | mm | |||
| 11 |
|
5.6±1 | mm | |||
| 12 | Visual beam diameter (8X) | 8.4±1.5 | mrad | |||
| 13 | Bare beam divergence angle | <2 | mrad | |||
| 14 | Warm-up time | <10 | min |
Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 15 | Power supply voltage | 48 | VDC |
| 17 | Working current | <12 | ADC |
| 18 | Power consumption | <576 | W |
| 19 | Recommended power supply | ≥800 | W |
Environmental requirements
| N | Characteristics | Parameter value | Unit |
| 20 | Ambient temperature | 15~35 | ℃ |
| 21 | Storage temperaturet | -10 - 50 | ℃ |
| 22 | Ambient relative humidity | < 90 | % |
Structural characteristics
| N | Characteristics | Parameter value | Unit |
| 23 | Laser dimension | 480*210*138 | mm |
| 24 | Net weight | 20.5±0.3 | kg |
