概述
Products Description

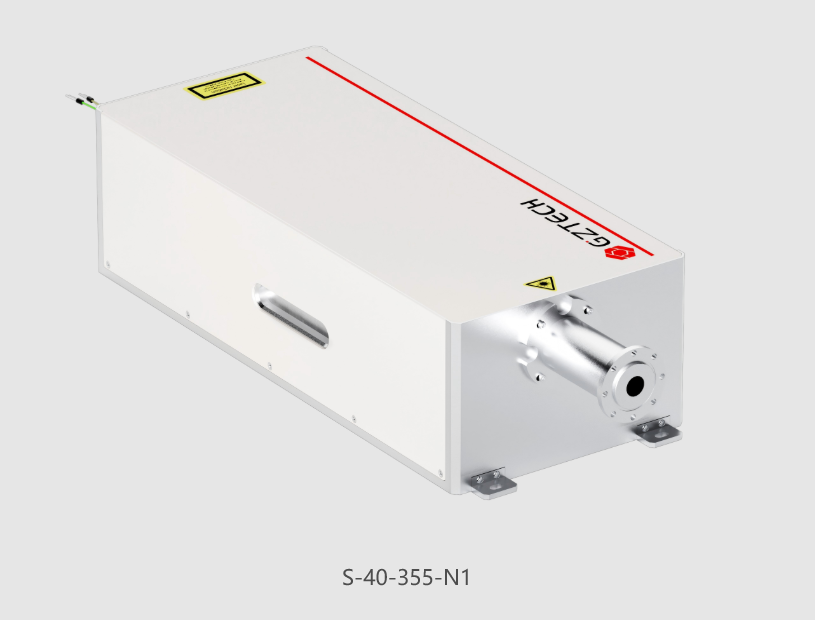

Our GZTECH 40W Water-Cooled Solid-State UV Laser is a high-performance, industrial-grade ultraviolet (UV) laser source designed for precision marking, micro-cutting, and material processing applications. Leveraging advanced solid-state laser technology with efficient water cooling, this system delivers stable 355nm UV output at 40W power, combining high energy density, minimal thermal damage, and exceptional beam quality to meet the demands of demanding manufacturing environments. Ideal for electronics, semiconductors, medical devices, glass/ceramics, and precision engraving industries.
Product Key Features：
✅ High Power & Stability: 40W Pulsed UV output at 355nm, with power stability ≤±3%, ensuring consistent processing quality for mass production.
✅ Ultra-Precise Processing: Exceptional beam quality (M² ≤1.3) and small focal spot (≤15μm typical) enable micron-level marking/engraving and fine micro-cutting with minimal heat-affected zone (HAZ).
✅ Water-Cooled Design: Integrated closed-loop water cooling system maintains optimal laser temperature (typically 20–30°C), reducing thermal drift and extending component lifespan for 24/7 continuous operation.
✅ Low Maintenance & Reliability: Solid-state architecture with no consumable optical components (e.g., no dye or gas replacement), minimizing downtime and operational costs. Durable housing and protective coatings ensure resistance to industrial dust/humidity.
✅ Wide Material Compatibility: Excels in processing UV-sensitive materials including plastics (PC, ABS, PVC), ceramics, glass, sapphire, thin metals (coated/stamped), and electronic components (chips, PCBs, connectors).
Product Parameters
Below parameters are our 40W Solid Nanosecond UV Laser Source Datasheet.
Product Applications：
-
Fused silica / quartz glass marking & drilling
-
PCB/FPC micro-cutting
-
Carbon Fiber Reinforced Polymer Material cutting.
-
Flexible Solar Module and other Brittle Material cutting.
-
Plastic and polymer micromachining
-
Micro-hole drilling & thin film ablation
Product Parameters
Below parameters are our 30W Solid Nanosecond UV Laser Source Datasheet.
Product Packaging
Package details: 1 set Laser Source + Manual + Test report per Carton Box
Certificates
CE/ ROHS and others
FAQ
1. Q: What is the expected lifespan or durability of the product?
A: Our product has an expected lifespan of 3-10 years and is designed to withstand heavy use in industrial environments.
2. Q: What is your company's experience and reputation in the industry?
A: Our company has been in business for 7 years and has a reputation for delivering high-quality products and excellent customer service. We have worked with numerous clients in various industries.
3. Q: What is your company's policy on Products Warranty?
A: We usually offer 18 months warranties on our Solid UV Laser Source products to ensure customer satisfaction.
4. Q: Are there any certifications or standards that the product meets?
A: Yes, our product meets several industry certifications and standards, including CE/ ROHS certifications and standards.
5. Q: Do you have your own factory?
A: Yes, we have. Our factory located in Wuhan city, Hubei province. Which near with Raycus headquarters and Wuhan High Speed Train Station.
6. Q: How can I visit your factory?
A: Before you take business trip from your country, please let us know. We will show you the way,or arrange time to pick you up if possible.
7. Q: How can I be your agent in my country?
A: Please leave feedback. It's better for us to talk about details by email.
优点
High power nanosecond solid UV laser
Average power: 30W / 40W available.
High Beam quality with M²<1.3
High power stability RMS <3%
All in one structure design and easy to install.
规格
Optical characteristics
| N | Characteristics | Parameter value | Unit | |||
| 1 | Center wavelength | 355 | nm | |||
| 2 | Maximum pulse energy | >500(@80kHz) | uJ | |||
| 3 | Output Power | >40(@80kHz) | W | |||
| 4 | Frequency adjustment range | 80-200 | kHz | |||
| 5 | Pulse Width | <33 (@80kHz) | ns | |||
| 6 | Output power instability | < 3% | RMS | |||
| 7 | Beam quality M² | < 1.3 | / | |||
| 8 | Spot roundness | ＞90 | % | |||
| 9 | Polarization direction | Horizontal | / | |||
| 10 | 1/e² beam diameter (Bare beam) | 0.7±0.1 | mm | |||
| 11 |
|
5.6±1 | mm | |||
| 12 | Visual beam diameter (8X) | 8.4±1.5 | mrad | |||
| 13 | Bare beam divergence angle | <2 | mrad | |||
| 14 | Warm-up time | <10 | min |
Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 15 | Power supply voltage | 48 | VDC |
| 17 | Working current | <12 | ADC |
| 18 | Power consumption | <576 | W |
| 19 | Recommended power supply | ≥800 | W |
Environmental requirements
| N | Characteristics | Parameter value | Unit |
| 20 | Ambient temperature | 15~35 | ℃ |
| 21 | Storage temperaturet | -10 - 50 | ℃ |
| 22 | Ambient relative humidity | < 90 | % |

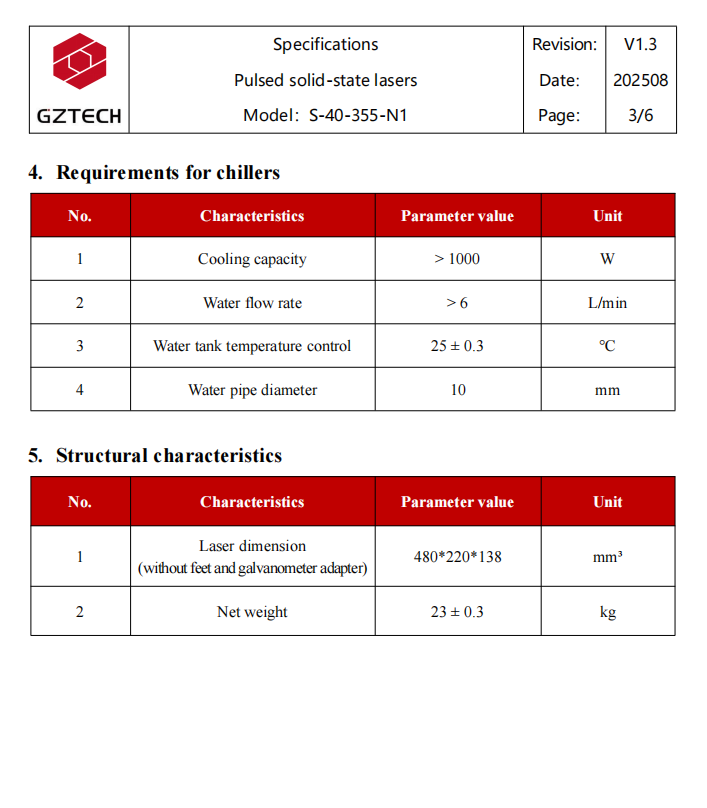

Structural characteristics
| N | Characteristics | Parameter value | Unit |
| 23 | Laser dimension | 480*220*138 | mm |
| 24 | Net weight | 23±0.3 | kg |
图表

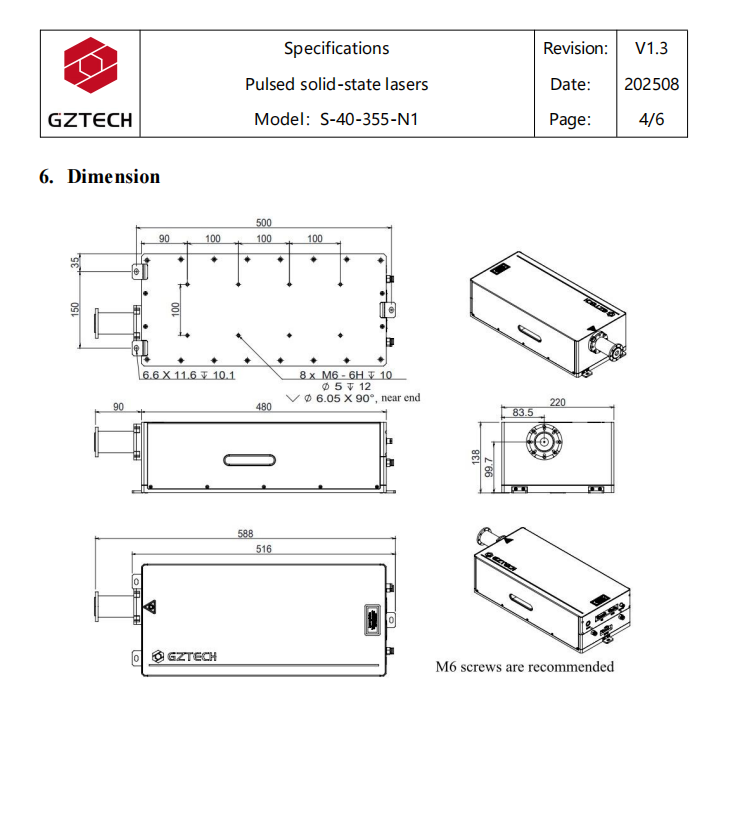

Product Dimension
Our 40W Solid Nanosecond UV Laser Source structure are including: Galvanmeter adapter, Laser controller and Metal cover.
